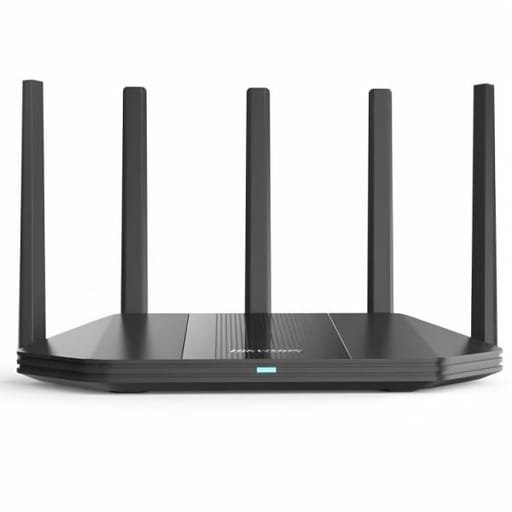

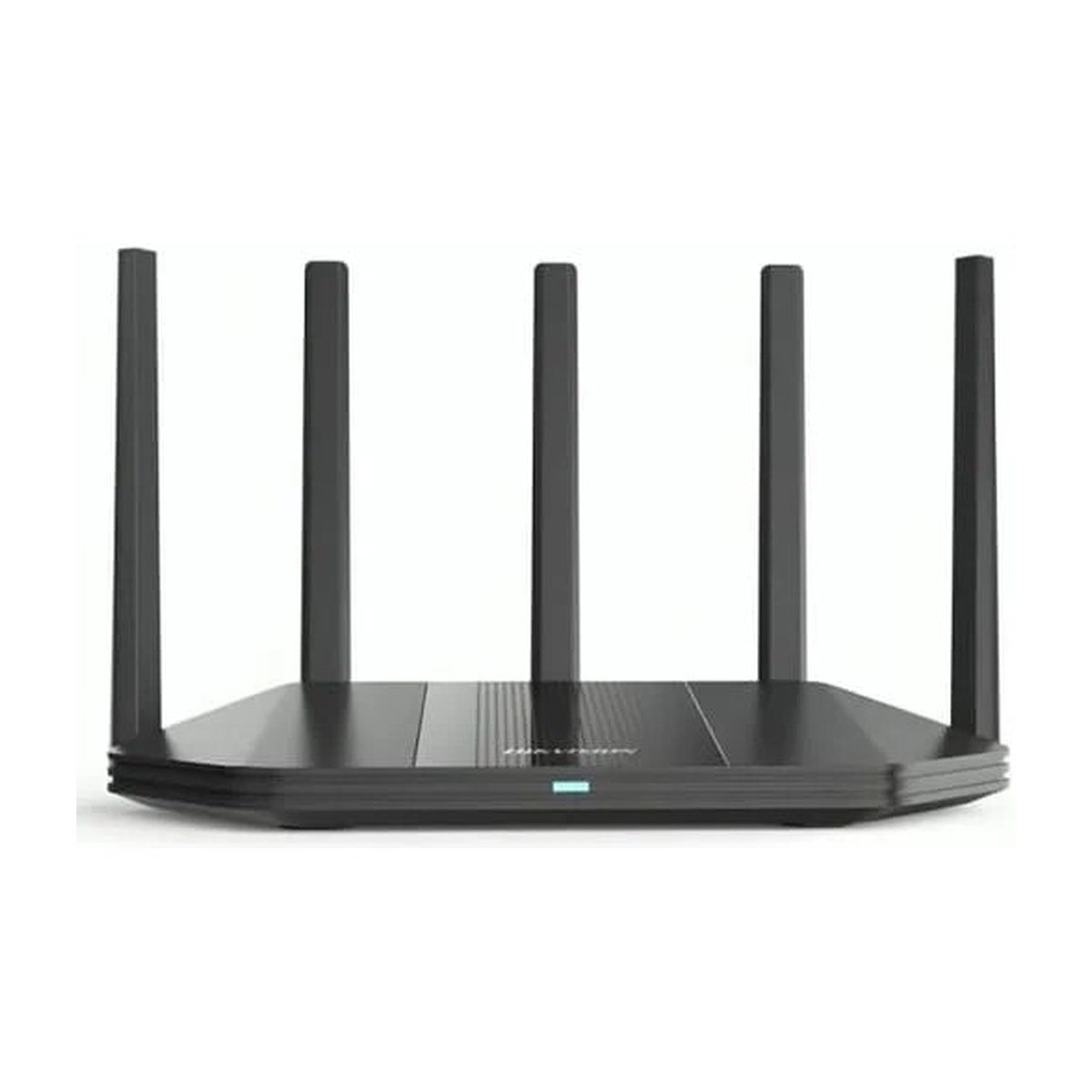

ROUTER HIKVISION DS-3WR30X – AX3000 – WIFI6 DUAL BAND

Descripción

General

Dimensiones del producto (W × H × D)

281.7 mm × 145.0 mm × 204.1 mm

Dimensiones del paquete (W × H × D)

365 mm × 340 mm × 73 mm

Peso neto

0.40 kg

Lista de empaque

• 3000Mbps Wi: Fi6 Router x 1

Power Supply Adaptor × 1

CAT5e Network Cable × 1

Quick Start Guide × 1

Regulatory Compliance and Safety Information × 1

Método de embalaje

Single pack

Temperatura de trabajo

0 ℃ to 40 ℃ (32 ℉ to 104 ℉)

Condiciones de Humedad

10% to 90% RH non: condensing

Temperatura de almacenamiento

-40 ℃ to 70 ℃ (: 40 ℉ to 158 ℉)

Humedad de almacenamiento

5% to 95% RH non: condensing

Modo de instalación

Desk: Mounted,Wall-Mounted

Max. El consumo de energía

≤12 W

Peso bruto

0.790 kg

Parámetro inalámbrico

Estándar inalámbrico

IEEE 802.11a/n/ac/ax @5GHz

IEEE 802.11b/g/n/ax @2.4GHz

Banda de frecuencia de trabajo

2.4 GHz，5 GHz

Poder de transmisión

CE:

＜20dBm(2.4GHz)

＜23dBm(5GHz)

Sensibilidad de recepción

5GHz:

-89dBm@HE80: MCS0

-60dBm@HE80: MCS11

2.4GHz:

-93dBm@HT40: MCS0

-73dBm@HT40: MCS7

Antena

5 high gain antennas

Alcance inalámbrico

Up to 1506 ft²/140 m²

（Recommend coverage for home use, actual Wi: Fi range varies depending on the layout and wall materials）

Max. Connections

256

Recommended Connections

60

Wireless Features

Dual Band Supported

MU: MIMO supported

Beamforming supported

OFDMA supported

Ganancia de la antena

5dbi

Max. Wi: Fi Speed

≤ 3000 Mbps

5GHz: 2402Mbps

2.4GHz: 574Mbps

Parámetro de hardware

Interfaz de red

1 × 10/100/1000 Mbps Adaptive WAN Port

3 × 10/100/1000 Mbps Adaptive LAN Ports

Indicador LED

LED indicator

Método de fuente de alimentación

Power Supply Adapter

Power Specifications

DC 12 V, 1 A

Botón

Reset button, WPS/MESH Button

RAM

256MB

ROM

128MB

Función de software

Modo de seguridad

WPA2: PSK,WPA/WPA2-PSK supported

DHCP

DHCP Client List

DHCP Server

Mecanismo de seguridad

Support fast and secure WPS connection

Support hiding wireless network name

Support controlling terminal network connection

Support firewalls

Login Authentication

Método de gestión

Web Control: PC, mobile

App Control: HPP, HC

TR069(TR098/TR181)

Upgrade

Web Upgarde

App Cloud Upgrade

Auto Upgrade

Registro del sistema

System log

Operating Mode

Router Mode

Wireless Extender Mode

Access Point Mode

WAN Mode

DHCP

Static IP

PPPOE

IP Version

IPv4

IPv6

Parental Control

Speed Limit

Internet Access Period

Filter URL

Parental Control

Custom Profiles

Firewall

Forbid UDP flood attack

Forbid TCP SYNC flood attack

Forbid ICMP flood attack

DDNS

Oray

VPN

PPTP Client

L2TP Client

NAT Forwarding

Port Mapping

DMZ

UPnP

Otros

VLAN/IPTV,WAN Self: Adaption,Quick Diagnosis,WIFI Optimization

MESH

Hikvision Mesh

Itinerancia

802.11k/v
